Strenght and durability tests

Strenght and durability tests are crucial for assessing the performance and durability of hydraulic systems and components.

Here are some specific types of hydraulic tests we conduct:

Automotive

Both in uniaxial and multiaxial configuration:

  • Air springs
  • GFRP leaf springs
  • Front and rear subframes
  • Control arms
  • Stabilizer bars







  • Rigid axles
  • Rollover bars
  • Sunroofs
  • Tow bar travel boxes

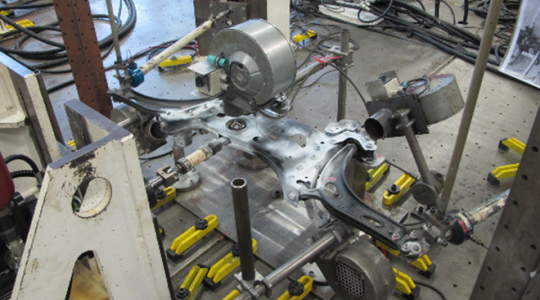

3-channel durability test on front subframe of passenger car

1-channel durability test on front lower control arm of passenger car

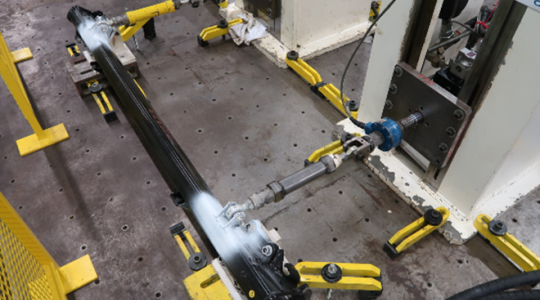

Stabilizer bar test on subframe of passenger car with salt spraying

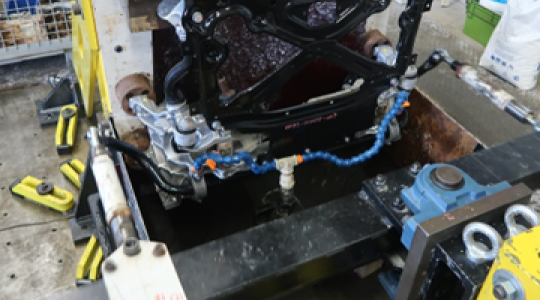

2-channel durability test on rigid rear axle of commercial vehicle

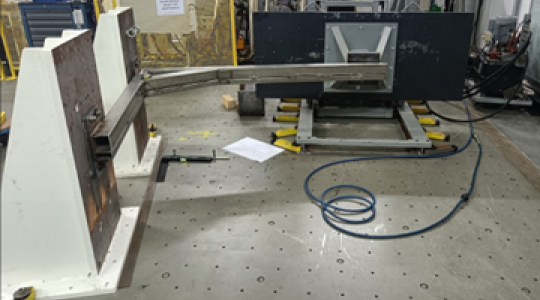

Bending test on rollover structure of coach vehicle

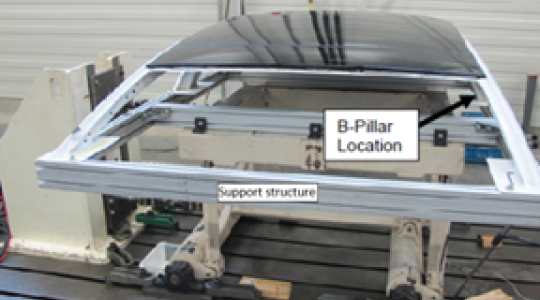

2-axial, 5 to 80Hz vibration test on sunroof of passenger car

Non-Automotive

  •  Stress testing of high-tech components
  • Specialized equipment for high-tech industry
  • Automated collector systems for livestock farming
  • Bending and durability test for lighting posts

2-channel load case test on robot gripper for high-tech industry

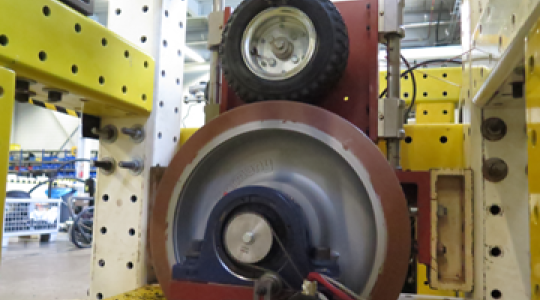

Durability test on e-drive of automated collector system for livestock farming

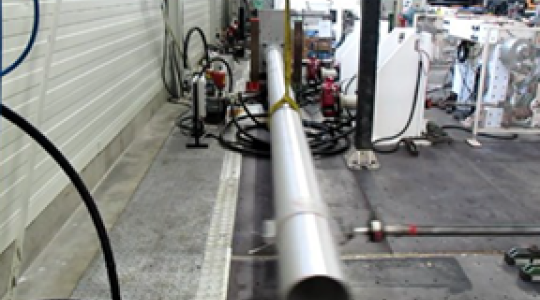

Durability test of a lighting post

In combination with our climate chambers and salt and mud spray equipment, the components can be exposed to climatic and environmental conditions during the durability test.

Special services:

  • Non-destructive crack investigation with Dye Penetrant Testing (PT) and Magnetic Particle Testing (MT)
  • Equivalent damage calculation to convert complex input data into usable test rig inputs
  • Strain gauge application and calibration (Read more)
  • Test rig build: design, engineering and construction (Read more)

Our equipment:

  • 40+ hydraulic actuators ranging from 5 to 165 kN with strokes up to 300 mm
  • 6 MTS control systems with dedicated 793 Controller Software and MultiPurpose TestWare (MPT). In total 48 control channels including force and displacement measurement
  • MTS RPC Pro software to tune complex test inputs and analyse measurements, e.g. road load input and multiaxial input with crosstalk, or durability test generation based on damage comparison
  • Wide range of sensors to measure load, displacement, acceleration, pressure, temperature or humidity
  • Faro 3D measurement arm for accurate test rig installation and commissioning (Read more)
  • Meccano installation system: Wide range of standard metal building blocks, e.g. construction beams, connection adapters and supports, levers and linear guides
  • Multiple air suspended T-slot beds for higher frequency and unwanted external resonance free testing
  • 3 large climate chambers up to complete passenger car size (Read more)
  • Helium leak detection system including a vacuum chamber with a volume of 230 liters (Read more)
