Engineered for demanding battery test environments, our fixture delivers precision, safety, and flexibility. When testing cylindrical cells in high-demands environments, stability and accuracy are critical.This solution provides both, with a robust and measurement-optimized design. Elevate your testing process and ensure reliable, high-quality data.

Why choose our cylindric cell fixture?

Effortless installation: No more time-consuming setups. The fixture is designed for quick and intuitive installation, saving valuable lab time.
Scalable on request: The fixture size and interface can be fully customized to ensure the best benefits to any kind of test setup.
High current handling: Test with confidence at high currents. The design is scalable to meet your specific power requirements.
Precision you can trust: Separate power and sense line connections ensure accurate voltage and current measurements, even under high load conditions. Tested and proven in our own Battery Lab.
Climate chamber ready: With its modular and compact design, the system fits efficiently into climate chambers.

Technical data (base version)

• Overall main dimensions: 1000x520x120 mm
• Battery diameter range: 16 - 60 mm
• Battery length range: 65 - 210 mm
• Current range up to 100 A
• Temperature range: -20°C - +60°C
• Quick and easy installation
• Fully adaptable to customer requirements
• Separate power and sense line connections for accurate measurement

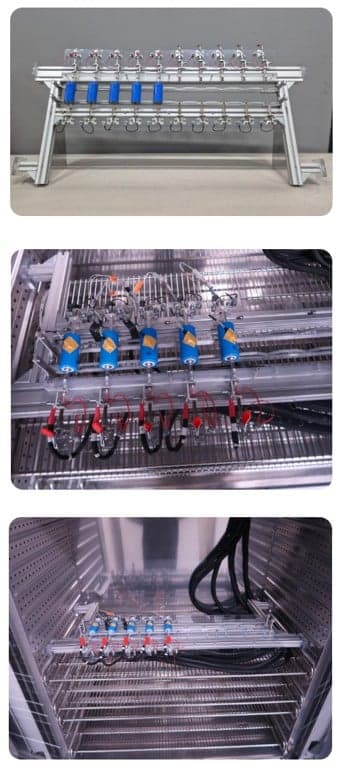

Designed to directly fit in the BINDER KB(F) 1060, 720 with 10 cells capacity and BINDER KB(F) 130, 260 and 470 with 6 cells per fixture. The fixture can be FULLY CUSTOMIZED to meet your specific requirements.
